Altis Sigma Electric Dirt Bike 98V $5499

Description

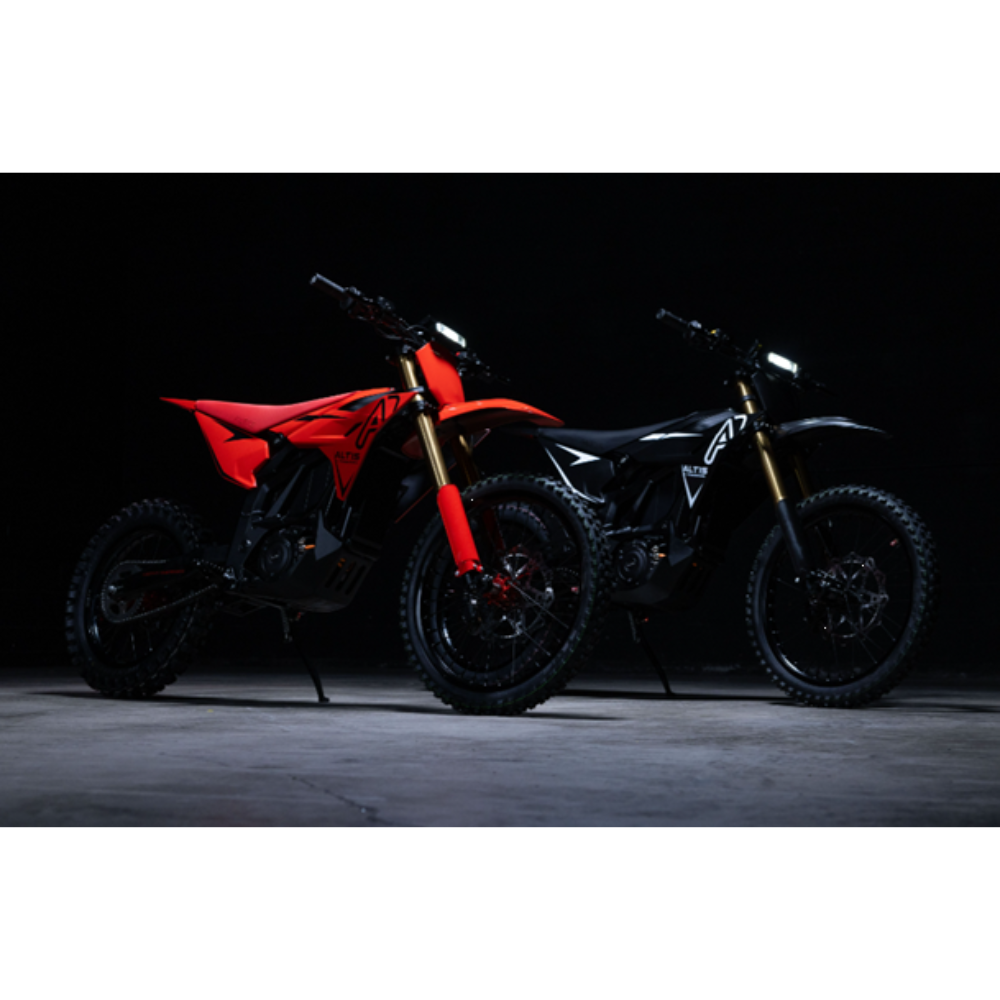

Introducing the all new Altis Sigma, our fastest 98V 20kW motor electric dirt bike. The Sigma model comes in 2 different sizes at XMotor USA. Standard with 19" Front and 19" Rear tire, or the MX with 19" Front and 16" Rear tire. With its light weight 98V system, 20kW motor, and 60 engineers in R&D to create the perfect geometry balance electric dirt bike. If shipping is needed, it is an additional $200 to ship to 48 states, $5699 after shipping.

Altis Sigma Highlight

97.2V 35AH (3402WH) Samsung 50S Battery Cells (Greenway Battery Pack)
20KW Peak Hairpin Motor (Automotive standard)
Torque: Standard Size 533n.m torque (39T Sprocket) Standard / MX  601n.m torque (44T Sprocket)
Laced wheels: Front 19" / Rear 19" (Straight Pull)
Adjustable off road air spring suspension
3.5" TFT Display with NFC feature
5 levels of regenerative braking
Headlight & Taillight (w/brake light) switch

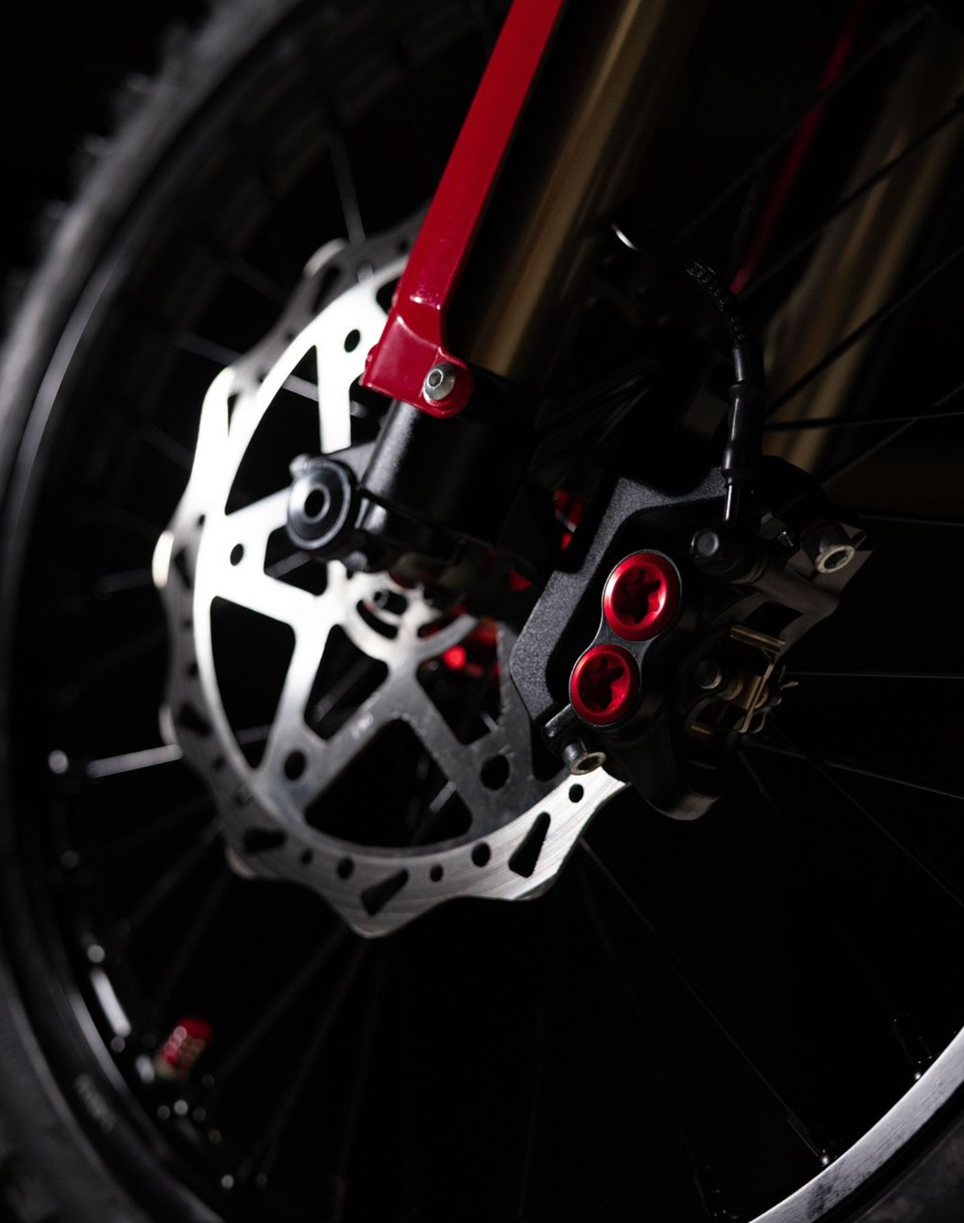

Heavy duty disc brake
Est Range: <65 Miles @ 25MPH
Gearbox Drive
36 Spokes

Altima Sigma CHASIS

Weight with battery: 84kg
Wheelbase: 1285mm
Front brake disc diameter: 260mm
Rear brake disc diameter: 220mm
Chain: 428H
Frame design: Aluminum alloy forging
Ground clearance: 300mm
Seat height: Est 840mm
Steering head angle: 26 degree
Suspension travel (front): 200mm
Suspension travel (rear): 85mm with linkage
Wheels: Spoked wheels with aluminum rims
Max Load: 300lbs

Altima Sigma Motor

Rated output: 8 kW
Max Power: 20kW
Torque: 72Nm
Charging input: AC 110V /12.5A
Charging time 100%: 180 min.
Charging time 80%: 120 min.
Cooling: Air cooled
Energy content: 3402 kWh
Electric motor: 96v - Hairpin motor
Max. power 20kW
